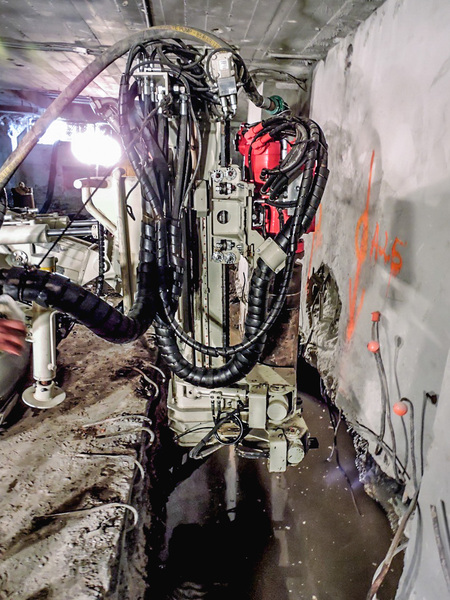

Comacchio MC 8D Drilling Rigs

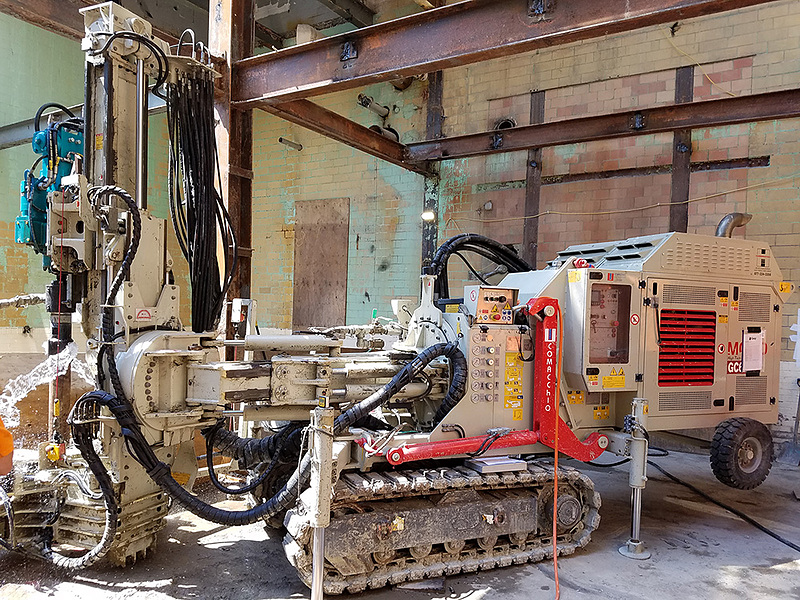

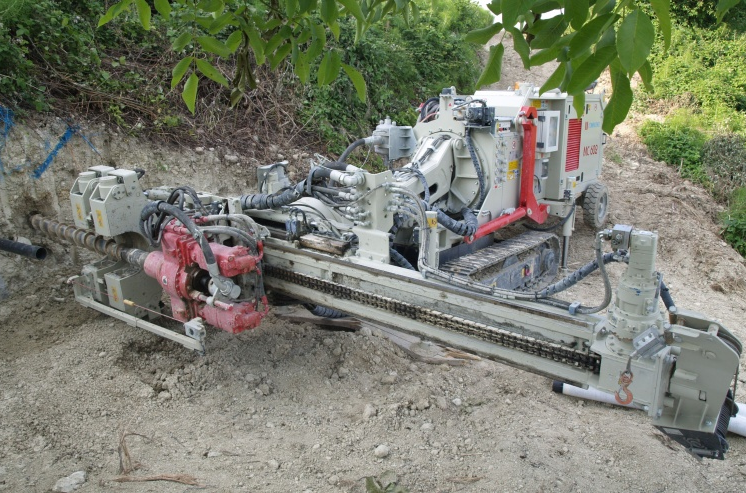

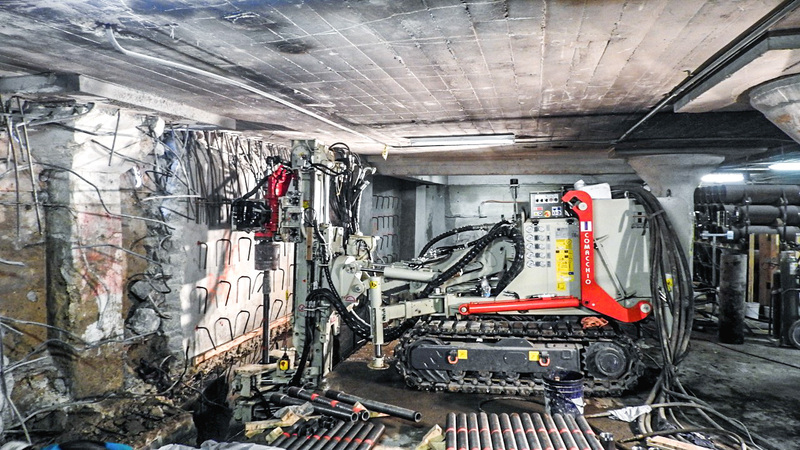

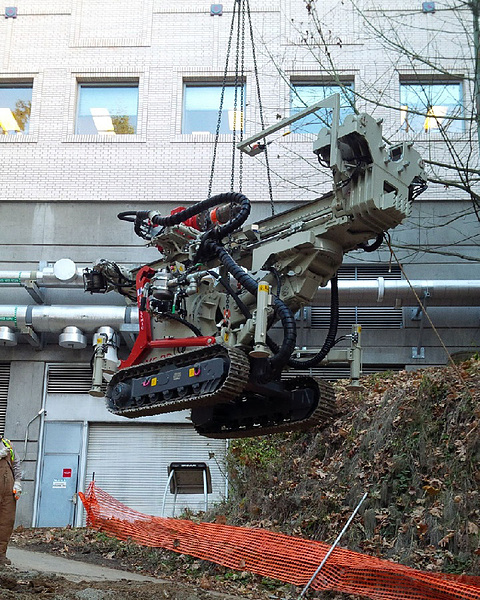

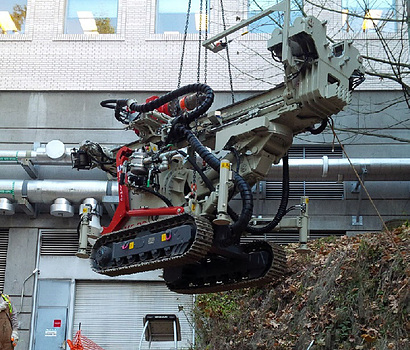

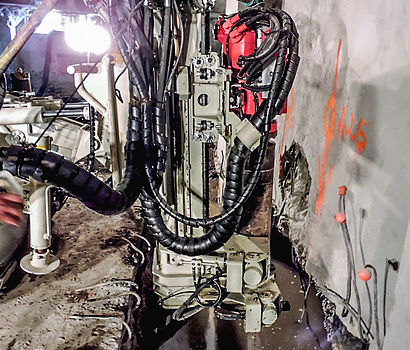

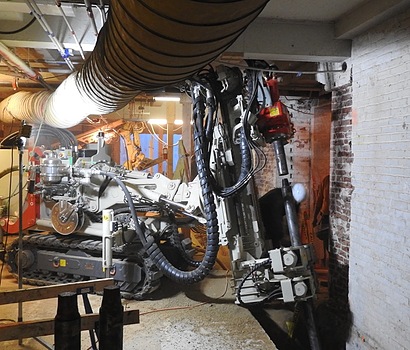

The MC 8D is a versatile and powerful hydraulic drilling rig, designed for civil engineering works such as micropiles, anchors and ground improvement in general through the use of all rotary and/or rotary- percussive drilling systems. Thanks to the innovative roll-off system, the MC 8D can be used with either onboard or separate power pack (electric or diesel). The telescopic mast allows the use of drilling rods of different length without the application of mast extensions. The standard features of the MC 8D include the innovative Comacchio radio control system, which electronically manages all functions, including the adjustment of the telescopic mast and the power pack roll-off system. Like all Comacchio rigs, the MC 8D can be customized according to specific needs.
Specifications | |
---|---|
Engine Power | 97 kW (130 HP) |
Max Width | 3.9 - 5.2 ft |
Weight | 20,000 - 21,000 lbs |
Mast Feed | 3.1 - 13.1 ft |
Feed Force | 12,140 lbs |
Retract Force | 12,140 lbs |
Rotary Torque | 3,319 - 17,148 lb*ft |
Rotary Speed Range | 70 - 380 rpm |
Clamp Range | 1.8 - 14.4 in |
