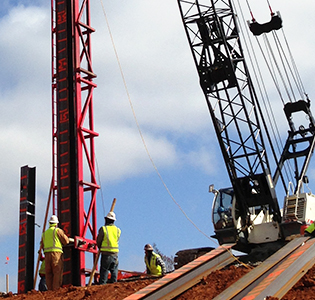

Delmag Diesel Pile Hammers
The "Delmag" name has become synonymous with high performance and ruggedly reliable equipment. Delmag has long been the world-leading manufacturer of diesel pile hammers and continues to develop new products and features.
The current range of diesel pile hammers includes the massive D200 with up to 492,000 ft. lbs. of energy as well as many other popular models for more typical piling projects. Delmag diesel hammers can be matched with a complete range of drive caps and accessories to provide the most productive and reliable package available.
Features
- Standard four-position ground adjustable fuel pump and optional infinitely variable hydraulic fuel pump.
- Positive cam operated lube pump and lower cylinder grease ports for trouble free lubrication.
- Superior combustion chamber design and fuel delivery system provides industry leading energy transfer as well as easy starting on soft piles and in cold weather conditions.
- High quality German materials and workmanship ensures near indestructible reliability.
- Trip assembly includes safety mechanism to prevent unintended engagement during operation.
| Models | D6-32 | D8-22 | D12-42 | D16-32 | D19-42 | D25-32/33 | D30-32/33 |
|---|---|---|---|---|---|---|---|
| Maximum Batter - standard/extended | 1:3 | 1:2 | 1:5/1:1 | 1:5/1:1 | 1:5/1:1 | 1:5/1:1 | 1:5/1:1 |
| Piston Weight (lbs) | 1,322 | 1,762 | 2,820 | 3,528 | 4,015 | 5,513 | 6,615 |
| Energy per Blow (adj) - max (ft lbs) | 13,500 | 20,100 | 33,990 | 40,200 | 43,225 | 66,380 | 75,452 |
| Energy per Blow (adj) - min (ft lbs) | 6,300 | 9,434 | 15,660 | 18,871 | 20,540 | 29,486 | 35,383 |
| Bearing Capacity* - (tons) | 68 | 90 | 157 | 201 | 216 | 332 | 377 |
| Blows per Minute - min/max | 38/52 | 36/52 | 35/52 | 36/52 | 35/52 | 35/52 | 36/52 |
| Consumption - Diesel fuel (gal/hr) | 0.7 | 1 | 0.95 | 1.45 | 1.45 | 2.11 | 2.64 |
| Consumption - Lubrication oil (gal/hr) | 0.16 | 0.26 | 0.26 | 0.26 | 0.26 | 0.26 | 0.26 |
| Capacity - Diesel fuel (gal) | 5 | 5.28 | 6.34 | 20 | 20 | 17.7 | 17.7 |
| Capacity - Lubrication oil (gal) | 1.3 | 1.58 | 1.72 | 5 | 5 | 5.02 | 5.02 |
| Operating Weights - Hammer only (lbs) | 5,440 | 5,870 | 7,600 | 8,900 | 9,500 | 14,100 | 15,200 |
| Operating Weights - Hammer w/ drive cap (lbs) | 6,640 | 7,070 | 8,800 | 10,100 | 10,700 | 16,100 | 17,200 |
| Operating Weights - Anvil (impact block) | 370 | 370 | 620 | 753 | 753 | 1,360 | 1,360 |
| Dimensions - Overall length (in) | 196 | 231 | 233 | 233 | 233 | 256 | 256 |
| Dimensions - Hammer length (in) | 150 | 185 | 186 | 186 | 186 | 207 | 207 |
| Dimensions - Hammer length + ext. (in) | -- | -- | -- | 219 | 219 | 246 | 246 |
| Dimensions - Hammer depth-rear (in) | 14 | 14 | 14 | 14 | 14 | 19 | 19 |
| Dimensions - Hammer depth-front (in) | 14 | 14 | 14 | 14 | 14 | 18 | 18 |
| Guiding - Standard (box leads) | 8" x 21" | 8" x 21" | 8" x 21" | 8" x 21" | 8" x 21" | 8" x 27" | 8" x 27" |
| Guiding - Optional | 12"/14" spud | 12"/14" spud | 8" x 27" | 8" x 27" | 8" x 27" | 8" x 32" | 8" x 32" |
| Guiding - Optional | -- | -- | 12"/14" spud | 12"/14" spud | 12"/14" spud | 14" spud | 14" spud |
*Bearing capacity based on the basic Engineering News formula: Bearing capactiy (tons) = [2e/(s+0.1)]/2000 where e = Hammer energy(ft lbs), s = Pile set (inches per blow).
| Models | D36-32/33 | D46-32/33 | D62-22 | D80-23 | D100-13 | D150-42 | D200-42 |
|---|---|---|---|---|---|---|---|
| Maximum Batter - standard/extended | 1:5/1:1 | 1:5/1:1 | 1:1 | 1:1 | 1:2 | 1:3 | 1:3 |
| Piston Weight - (lbs) | 7,938 | 10,143 | 13,670 | 17,640 | 22,046 | 33,000 | 44,092 |
| Energy per Blow (adj) - max (ft lbs) | 90,540 | 122,140 | 164,620 | 212,420 | 265,530 | 377,630 | 492,000 |
| Energy per Blow (adj) - min (ft lbs) | 40,900 | 52,260 | 78,960 | 126,192 | 157,743 | 242,660 | 315,000 |
| Bearing Capacity* - (tons) | 453 | 611 | 823 | 1,062 | 1,328 | 1,764 | 2,460 |
| Blows per Minute - min/max | 36/53 | 36/53 | 35/50 | 35/45 | 35/45 | 36/52 | 36/52 |
| Consumption - Diesel fuel (gal/hr) | 3.04 | 4.23 | 5.28 | 6.6 | 7.93 | 11.0 | 15.86 |
| Consumption - Lubrication oil (gal/hr) | 0.61 | 0.61 | 0.84 | 0.77 | 0.77 | 1.0 | 1.5 |
| Capacity - Diesel fuel (gal) | 23.51 | 23.51 | 25.86 | 40.95 | 40.95 | 81.9 | 113 |
| Capacity - Lubrication oil (gal) | 4.49 | 4.49 | 8.32 | 8.45 | 8.45 | 11.9 | 21 |
| Operating Weights - Hammer only (lbs) | 21,500 | 23,700 | 28,370 | 36,085 | 43,700 | 120,000 | 125,660 |
| Operating Weights - Hammer w/ drive cap (lbs) | 24,860 | 27,060 | 32,910 | -- | -- | -- | -- |
| Operating Weights - Anvil (impact block) | 2,270 | 2,270 | 2,833 | 5,004 | 5,004 | 14,694 | 14,694 |
| Dimensions (in) - Overall length | 256 | 256 | 280 | -- | -- | -- | -- |
| Dimensions (in) - Hammer length | 208 | 208 | 233 | 283 | 290 | 275 | 324 |
| Dimensions (in) - Hammer length + ext. | 247 | 247 | 273 | -- | -- | -- | -- |
| Dimensions (in) - Hammer depth-rear | 21 | 21 | 21 | 26 | 26 | -- | -- |
| Dimensions (in) - Hammer depth-front | 21 | 21 | 21 | 24 | 24 | -- | -- |
| Guiding - Standard (box leads) | 8" x 32" | 8" x 32" | 8" x 32" | Inquire | Inquire | Inquire | Inquire |
| Guiding - Optional | Inquire | Inquire | Inquire |
*Bearing capacity based on the basic Engineering News formula: Bearing capactiy (tons) = [2e/(s+0.1)]/2000 where e = Hammer energy(ft lbs), s = Pile set (inches per blow).
